Vertical series boat lifts are constructed of special T-6 6061 aluminum extrusions and load tested from 130% to 200% its rated capacity. Much of the hoists construction utilizes bolts rather than welds to allow for easy transportation and on site assembly. This offers a big advantage over other manufacturers who require their 11′ wide lifts to be carried from the driveway down to the water fully built or floated in from a local boat launch. The hoists high vertical lift design keeps your boat far out of waves reach. Informed consumers prefer the vertical type design due to the increased lift capacity and safer frame design.
Our Popular PWC Lifts are made from the same materials as our larger lifts and come in both a vertical design as well as two more economical cantilever designs.

1. All hoists have fully adjustable legs with pivoting base pads for level installation.
2. Stainless cables and corrosion resistant fasteners.
3. Durable nylon pulleys with bronze bushings.
4. Unlike other hoists our patented chain and gear driven winch system is made for boat hoists, it is not a simple boat trailer winch. They are sized and geared accordingly to the lifts weight capacity and still easy to turn on all hoist sizes. The winch wheel is larger than most, a full 48″ in diameter allowing for easy use. Unlike other lower cost winch systems, ours incorporates a winch cable guide to evenly distribute cable across the drum which prevents cable climbing and bunching.
5. All hoists have standard adjustable bunks that will accept in-board ski boats.
6. Optional full length guide on bunks, and motor stop.

Optional solar powered 12v winch unit is available and comes with a solar panel and mounting bracket.
Optional roof systems are available in the color multiple colors.

Want to get an idea of pricing for Lifts? View the Boat Lift Price List

Not sure what type of Lift you need? Contact Jim Lawrence Jr. he will be happy to help you out!

Contact him at (705) 498-0721 or harpersmarina@yahoo.com

Wave Armor jet ski lifts for personal watercrafts are 100% RotoMolded tough for extreme performance and durability and are foam filled for a virtually unsinkable investment. Our PWC Ports are the easiest Drive On/Roll Off Port in the market. Designed with the PWC and Jet Ski enthusiast in mind, all Wave Armor PWC Ports include features that are above and beyond industry standard.

SLX 5 & 6

SLX Series Ports: The original easy drive on/roll off design, changed industry standards with independent wheel system, admired for over 10 years running for ease of use and versatility.

• Designed to integrate with OTWD docks, installed as a stand-alone system, or connect with other floating dock brands and structures.

• Integrated side pontoons, molded-in direct connect pockets, and removable bow stop with tie-down ring. Comes with a variety of mounting options, 12 adjustable shock-absorbing wheels.

• Crafted with an incredibly durable rotomolded shell. Fully filled with marine-grade EPS foam, offering maintenance-free high-density polyethylene construction.

SLX 5
301890
Dims: 12.5’ L × 5’ w
Weight: 286 lbs.
Weight capacity: 1500 lbs.

SLX 6
301891
Dims: 12.5’ L × 6’ w
Weight: 321 lbs.
Weight capacity: 1800 lbs.

SPECIAL ORDER

PRO 5, 6 & WIDE BODY

• Patented design. Easy drive-on and drive-off functionality. Gradual entrance allows for a seamless and flat ride, eliminating jarring motions.

• Deeper midsection design effortlessly accommodates PWCs with deeper hulls.

• Crafted with an incredibly durable rotomolded shell, fully filled with marine-grade EPS foam, offering maintenance-free high-density polyethylene construction.

• Strategically positioned, super soft bumper-like wheels to allow a soft, smooth, worry free loading experience. Wheel pockets designed for perfect alignment and optimal hull protection every time.

• Pro line of connectors and attachments for seamless integration with your waterfront setup.

• Molded-in bow stop, paired with a robust stainless steel clip and chain, guarantees secure positioning.

• The PRO Wide Body offers additional walk-around space by expanding the width to 80”.

PRO 5
302098
Dims: 12.5’ L × 5’ w
Weight: 300 lbs.
Weight capacity: 1,500 lbs.

PRO 6
302096
Dims: 12.5’ L × 6’ w
Weight: 350 lbs.
Weight capacity: 1,800 lbs.

PRO WB
302400
Dims: 12.5’ L × 6.5’ w
Weight: 380 lbs.
Weight capacity: 2,250 lbs.

Want to get an idea of pricing for Lifts? View the PWC Port Lift Price List

Not sure what type of Lift you need? Contact Jim Lawrence Jr. he will be happy to help you out!

Contact him at (705) 498-0721 or harpersmarina@yahoo.com

Roller Ramp Systems Information

Roller Ramp Kits:
1,200lb & 2,000lb Kits

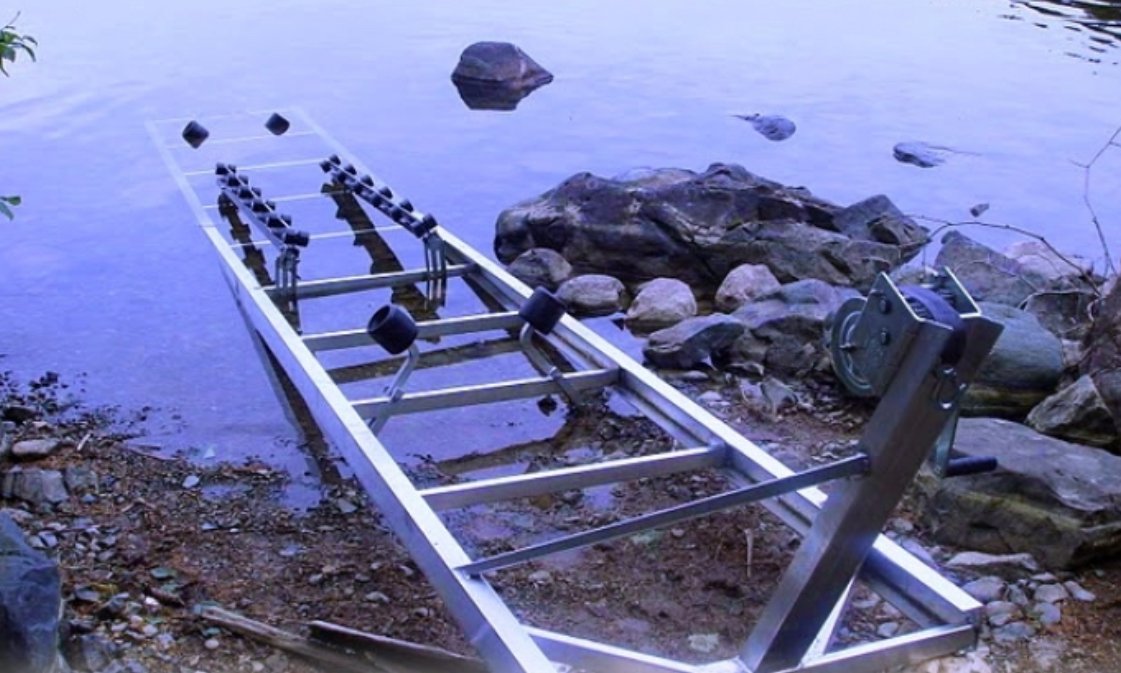

Roller Ramps are constructed using marine grade aluminum and heavy duty rubber rollers. Placed easily at the edge of the water, a roller ramp is a perfect fit for smaller boats.

Aluminum Keel Rollers:
Keel Rollers come in 8′ and 10′ lengths constructed from marine grade aluminum and heavy duty rubber rollers.
Single and double roller designs are also available. They can be attached directly on to your dock.

Want to get an idea of pricing for Lifts? View the Roller Ramp Price List

Not sure what type of Lift you need? Contact Jim Lawrence Jr. he will be happy to help you out!

Contact him at (705) 498-0721 or harpersmarina@yahoo.com
